China Huaxia Special Metal Limited

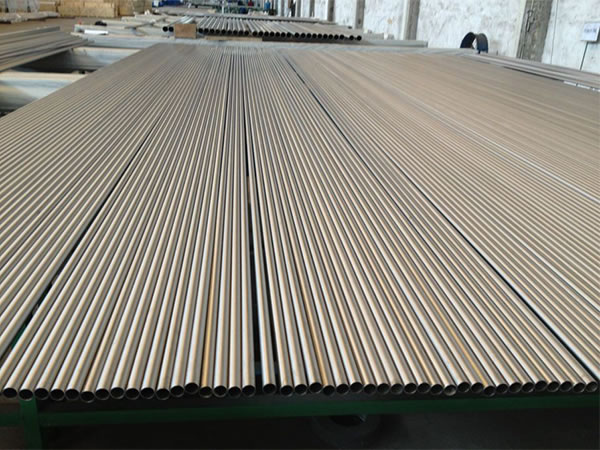

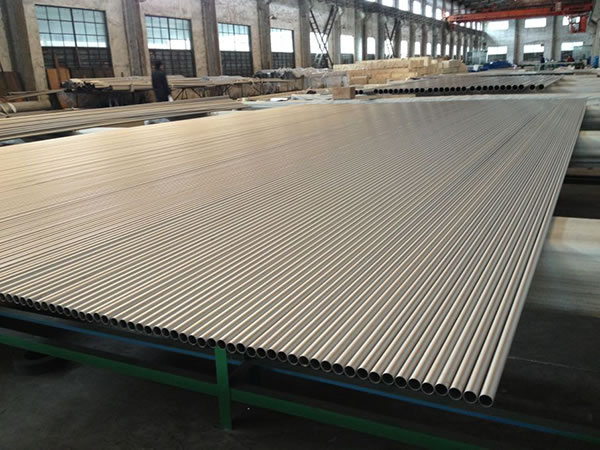

CSM is specialized in exporting seamless titanium tube and pipe, and owning an annual production of 3,000 tons. CSM seamless pipes and tubes feature high specific strength, corrosion resistance, good cryogenic property, low elasticity modulus, low thermal conductivity and no ferromagnetism.
CSM range of seamless titanium tube and pipe sells broadly around the world. Rigid supervision is executed in terms of quality, including chemical component analysis, air pressure testing, nondestructive testing, eddy current testing and ultrasonic testing. We also have mechanical testing, covering tensile test, flaring test, flattening test, etc.

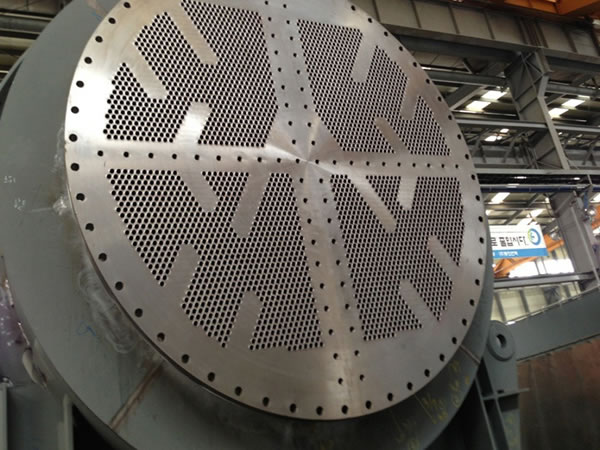

Successful cases
Project name: MUW-2 Asset Renewal-900 TPD Vacuum Evaporated Salt
Fabricator: Alfa Laval India
End user: Tata Chemical
Material: Ti Gr.12
Size & Qty: 38.1x0.71x6096mm 29546kgs
25.74x1.63x6096mm 9039kgs
Project name: KALTIM-5
Fabricator: DongHwa Entec
Engineering corporation: Toyo Engineering
End user: Pupuk Kaltim
Material: ASTM B338 Gr.2
Size: 25.4 x 0.89 x7522 mm
19.05 x 0.89 x 4340~5320 mm
Qty: 25tons
Standard
ASTM/ASME B/SB338, ASTM B861
Material
Gr.1, Gr.2, Gr.3, Gr.7,, Gr.9, Gr.12, Gr.16
Product Parameter

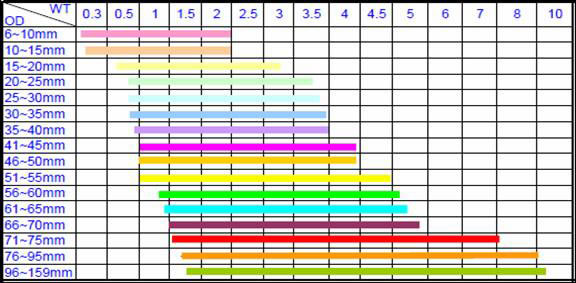

Size Range
Chemical component of selectable material | Type | N | C | H | Fe | O | AI | V | Mo | Ni | Pd | Ti |
| Element | |||||||||||
| GR.1 | ≤0.03 | ≤0.10 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.10 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.10 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.10 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.10 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.5 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 | Residual |
| GR.1 | σb ≥240Mp a | 170Mpa ≤σ0.2 ≤310Mp a | δ≥24% |
| GR.2 | σb ≥345Mp a | 275Mp a ≤σ0.2 ≤450Mp a | δ≥20% |
| GR.3 | σb ≥450Mp a | 380Mp a ≤σ0.2 ≤550Mp a | δ≥18% |
| GR.7 | σb ≥345Mp a | 275Mp a ≤σ0.2 ≤450Mp a | δ≥20% |
| GR.9A | σb ≥620Mp a | 485Mp a ≤σ0.2 | δ≥15% |
| GR.9B | σb ≥860Mp a | 725Mp a ≤σ0.2 | δ≥10% |
| GR.12 | σb ≥483Mp a | 345Mp a ≤σ0.2 | δ≥18% |

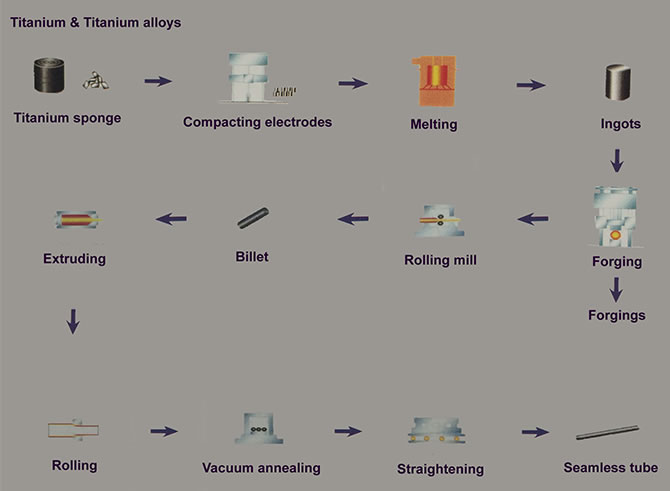

Production Flow of Seamless Titanium Tubes and Seamless Titanium Pipes
Productivity (maximum and minimum amount of order)
Unlimited
Lead time
The general lead time is one month. And it actually depends on the amount of the order.
Transportation
The general way of transportation is by sea. And sea transportation and air transportation are selectable.

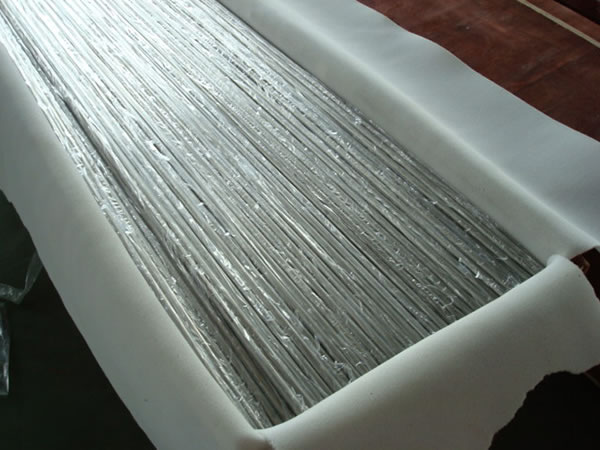

Packaging

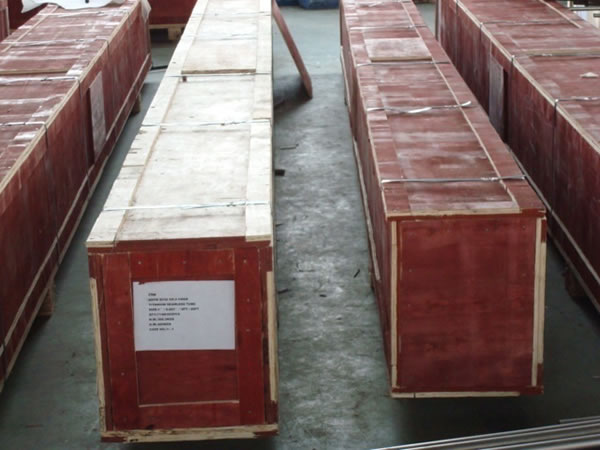

Plywood case
Payment
As agreed
Distribution partner
None
