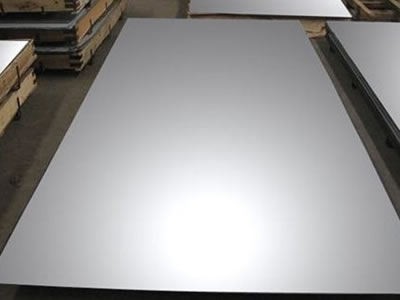

Titanium Plate, Titanium Sheet

CSM range of titanium sheet and plate is generally produced in accordance with standards such as ASTM/ASME B/SB265, ASTM F136, ASTM F67, AMS 4911, and AMS 4900.

CSM's annual production of titanium sheets and plates is 5,000 tons, including 1,000 tons for PHE (plate for heat exchanger), and 4,000 tons for other applications. CSM high quality titanium sheets and plates, including cold rolled titanium sheets and hot rolled titanium plates, are under strict tracking and check in terms of raw material -- titanium sponge. CSM controls the whole process, such as the melting, forging, hot rolling, cold rolling, heat treatment, etc. We export products around the world and warmly welcome you to cooperate with us.

Successful cases

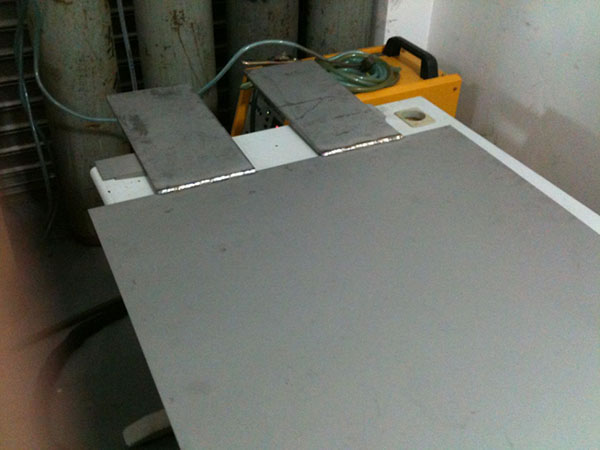

Project name: Inco Canada
Customer: Siemens
De Nora Tech
Material: Ti Gr.1 Sheet
Size: 1.5mm (thickness)
Quantity: 150 tons

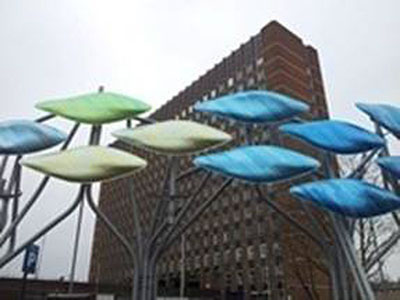

Project name: 2012 Olympic Games
Material: Ti Gr1 Sheet
Size: 0.5mmx1250x2500mm
Qty: 8 tons


Size range
Cold rolling Hot rolling
Thickness 0.4mm-5mm 5mm-8mm
Width 1,250mm max. 3,000mm max.
Length 3,000mm max. 7,000mm max.

ASME/ASTM SB/B265, ASTM F136, F76, AMS 4911, AMS4900.

GR.1, GR.2, GR.3, GR.4, GR.5, GR.7, GR.9, GR.11, Gr.12, GR.16, GR.23

Chemical component of selectable material
Element N C H Fe O AI V Mo Ni Pd Ti
GR.1 ≤0.03 ≤0.08 ≤0.015 ≤0.2 ≤0.18 Residual
GR.2 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 Residual
GR.3 ≤0.05 ≤0.08 ≤0.015 ≤0.3 ≤0.35 Residual
GR.4 ≤0.05 ≤0.08 ≤0.015 ≤0.5 ≤0.40 Residual
GR.5 ≤0.05 ≤0.08 ≤0.015 ≤0.4 ≤0.20 5.5-6.75 3.5-4.5 Residual
GR.7 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.12-0.25 Residual
GR.9 ≤0.02 ≤0.08 ≤0.015 ≤0.25 ≤0.15 2.5-3.3 2.0-3.0 Residual
GR.12 ≤0.03 ≤0.08 ≤0.015 ≤0.3 ≤0.25 0.2-0.4 0.6-0.9 Residual
Mechanical capacity of selectable material
Type Tensile Testing Bend Testing
T<1.8mm 1.8~4.75mm
GR.1 σb ≥240Mp a 170Mpa ≤σ0.2 ≤310Mp a δ≥24% 3T 4T
GR.2 σb ≥345Mp a 275Mp a ≤σ0.2 ≤450Mp a δ≥20% 4T 5T
GR.3 σb ≥450Mp a 380Mp a ≤σ0.2 ≤550Mp a δ≥18% 4T 5T
GR.4 σb ≥550Mp a 483Mp a ≤σ0.2 ≤655Mp a δ≥15% 5T 6T
GR.5 σb ≥895Mp a 828Mp a ≤σ0.2 δ≥10% 9T 10T
GR.7 σb ≥345Mp a 275Mp a ≤σ0.2 ≤450Mp a δ≥20% 4T 5T
GR.9A σb ≥620Mp a 483Mp a ≤σ0.2 δ≥15% 5T 5T
GR.9B σb ≥860Mp a 725Mp a ≤σ0.2 δ≥10%
GR.12 σb ≥483Mp a 345Mp a ≤σ0.2 δ≥18% 4T 5T

Productivity (maximum and minimum amount of order)

Lead time
The general lead time is one month. And it actually depends on the amount of the order.

The general way of transportation is by sea. And sea transportation and air transportation are selectable.

Plywood case

As agreed

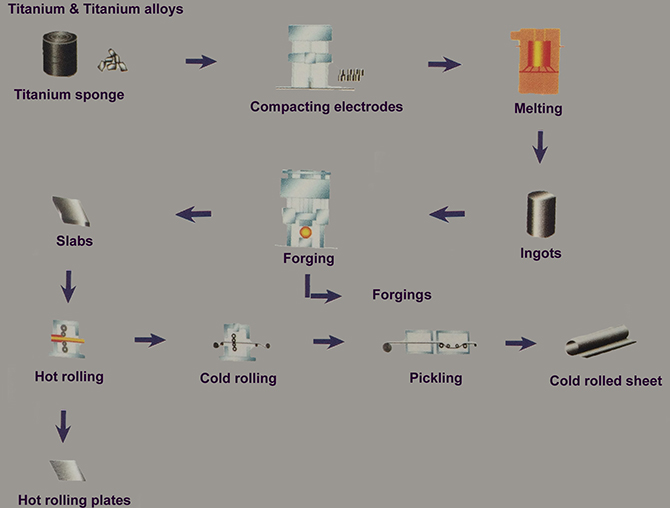

Production Flow of Titanium Sheets and Titanium Plates
