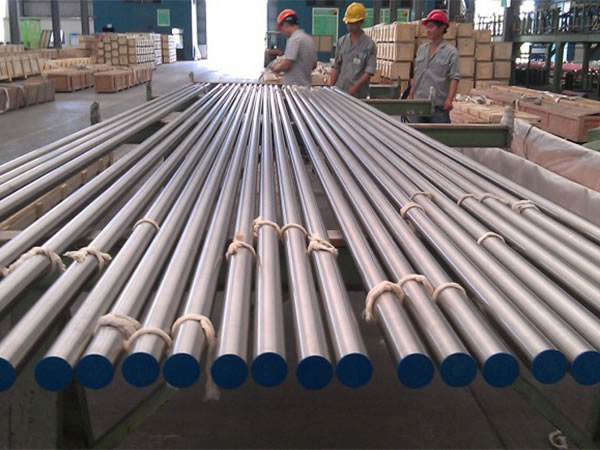

Nickel & Nickel Alloy Seamless Tube/Pipe

We perennially supply nickel and nickel alloy seamless tube to more than 30 countries and regions overseas. Our nickel tube products cover nickel alloy seamless pipe,hastelloy seamless pipe, pure nickel seamless pipe, nickel-iron-chromium alloy seamless pipe, etc. They are mainly applied to the equipment of alkaline chemical industry, food processing and hydropower station. It can be also used in the environment of salt corrosion.

Being one of the largest nickel and nickel alloy products manufacturers, CSM Group has the annual production value of 1,000 tons. We have been making a rare metal industry with our own factory and trading company in Shanghai, China. Our high quality and customer service are ready to be favored by our highly regarded customers from home and abroad.

In addition to strict control on raw material selection, CSM also performs strict control on production lines and product testing so as to ensure premium quality of our nickel and nickel alloy seamless tubes and pipes. As a professional manufacturer of nickel and nickel alloy pipes and tubes, CSM is able to make products using 28 types of different types of materials. We have already done several projects which are substantially influential in China.

Successful cases

Project 1:
End user: Reliance Industries Limited (India)
Material: SB163 UNS N08825
Size: 42.4x1.65x8015mm
Qty: 2275kgs

Project 2:
End user: Shell Australia
Fabricator: WE. Smith Engineering Co., Ltd.
Material: ASTM A213 TP316 seamless U-shaped tubes
19.05x2.11xL      12.8tons
ASTM B444 UNS N06625 seamless U-shaped tubes
19.05x2.11xL      6.7tons

Project 3:
Fabricator: Walter Tosto S.p.a
Material: SB167 UNS N06690 Seamless U-tube
Size: OD31.75 x 3.4(min.) x L
Qty: 200 tons

Project 4:
End User: Petrobras
Fabricator : GEA Do Brasil
Appliciation: Petrobras P75/77 Ocean Platform
Material: ASTM A213 TP316L U-shaped tubes
12.7x1.24/1.65, 90tons
ASTM B444 UNS N06625 U-shaped tubes
12.7x0.89, 20tons

Product Parameter

Size range
Outer diameter: 6~ 323.9mm

Material

(1) Pure Nickel-99%
Nickel200/201(UNS N02200/N02201)
(2) Monel-nickel-copper alloy
Monel400(UNS N04400)- Ni63Cu30
(3) Inconel-Ni- Cr alloy
Inconel600(UNS N06600)- Ni73Cr15
Inconel601(UNS N06601)- Ni58Cr21
Inconel617(UNS N06617)- Ni52Cr22
Inconel625(UNS N06625) - Ni58Cr20
Inconel690(UNS N06690) - Ni58Cr27

(4) Incoloy- Ni - Cr - Fe alloy
Incoloy800(UNS N08800)- Ni32Cr20
Incoloy800H(UNS N08810)-Ni32Cr20
Incoloy825(UNS N08825)-Ni40Cr22
Incoloy925(UNS N09925)-Ni44Cr21
Carpent 20(UNS N08020)- Ni43Cr22
(5) Hastelloy-Ni-Mo alloy
Hastelloy B2 (UNS N10665 )-NiMo28
Hastelloy C22(UNS N06022)-Ni57Cr21
Hastelloy C276(UNS N10276)-Ni59Cr15

Standard
ASTM B161, B163, B165, B167, B407, B423, B444, B622, B668, B729
